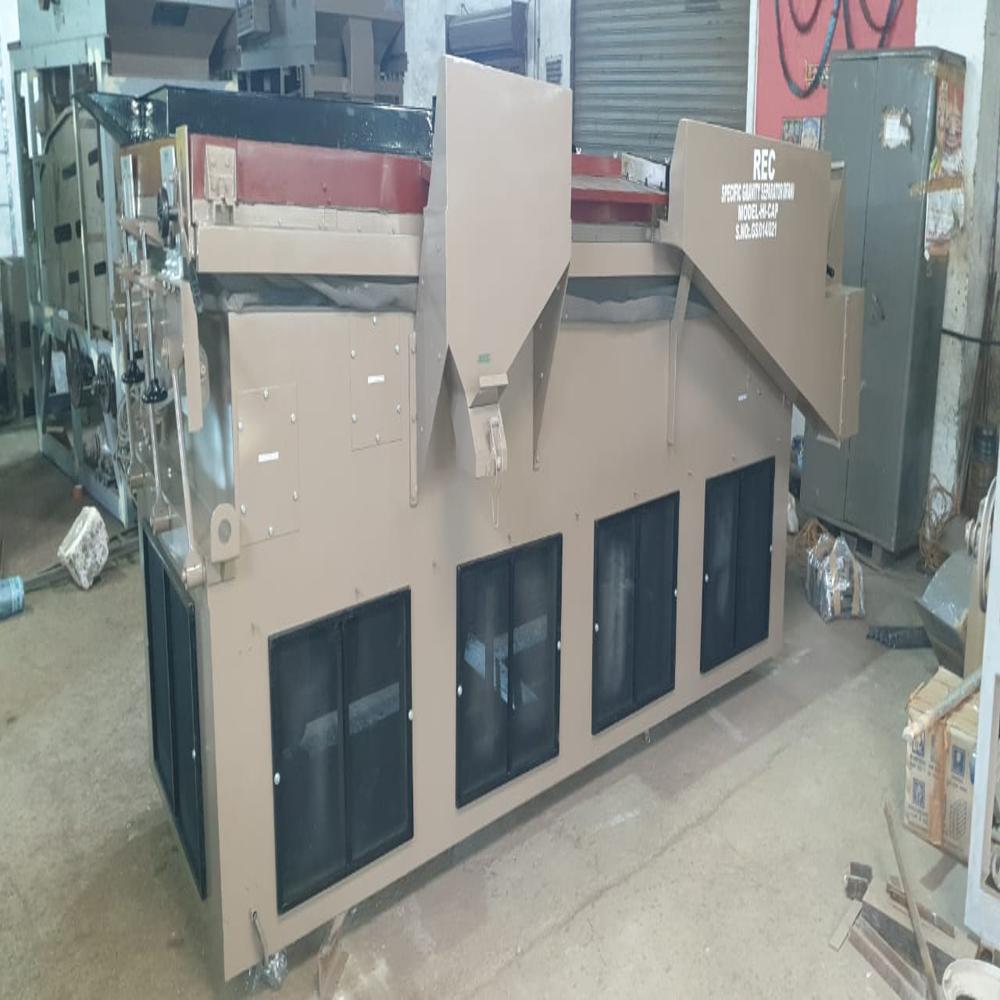

REC Specific Gravity Separator Model GS-7F6T

REC Specific Gravity Separator Model GS-7F6T Specification

Type
REC Specific Gravity Separator Model GS-7F6 T

Material
MS

Capacity
6 Ton

Computerized
No

Automatic Grade
Semi-Automatic

Control System
Human Machine Interface

Air Tank Capacity
5500 Cubic Feet Per Minute (ft3/min)

Size
Standard

Voltage
13 Horsepower (HP)

Weight
1600 Kilograms (kg)

Warranty
Yes

REC Specific Gravity Separator Model GS-7F6T Trade Information

Minimum Order Quantity
1 Number

Supply Ability
50 Per Year

Delivery Time
10 Days

About REC Specific Gravity Separator Model GS-7F6T

Specification

Model	GS-7F6T
No. of Fans	7
Capacity (Based on Wheat)	6.0 Ton/Hr
Size of Deck	3110 x 1155mm
Deck Area	4,454 M2
Type of Deck	Rectangular
Power Consumption	9.75 Kw
Electric Drive (440V, 50 C/s, 3 Phase, AC Supply)	10 H.P - For Fan 3 HP- For Deck
O.A. Size (L x B x H) approx.	3750 x 1600 x 1900mm

Application

It is specially meant for upgrading of the product quality i.e. seed / grain etc separating the impurities on the basis of the difference in Specific Gravities which are otherwise are of same shape and size.The impurities which are of the same shape and size as of the required quality product, but having different specific gravity cannot be separated by Air Screen Cleaner (Seed Graders), Length Separators because these machines work on the principle of separation (grading) on the basis of difference in Physical Parameters like shape and size etc.

Quick and easy interchangeable deck assembly rests on four specially designed levers with Derlin bushings. All steel welded frame. Adjustable side and end inclinations of the deck assembly. Adjustable deck speed, multiple fan system with independent Air control for each fan, adjustable Air Pressure. All these adjustments can be done while the machine is in operation.

Separate spouts with main body holding clamps at bagging off height for each separation i.e. heaviest (stone and other heavy substances), good seeds, Middlings, Lighter and Lightest substances. Rectangular shape of the deck provides greater capacity and accuracy. Eccentrics are perfectly keyed and aligned on the shaft to avoid any unwanted vibrations. Feed hopper is provided with Feed Control Device.

The product, consisting of approximately equal sized grains/seeds/particles, is gravity fed from the hopper to the deck. Oscillation speed, side wise as well as lengthwise inclination of deck, air stream with controlled air pressure which is created by multi-fan System under the deck cause the grains/particles to arrange themselves in layers of uniform specific weight. The lighter particles

Standard Accessories:

The machine is complete with suitable electric motor, starter, switch, one deck assembly, hopper with feed control, tool kit and other standard features.

Optional Accessories:

Buffer hopper / Surge Bin (Metallic),Vibratory feeder, Canopy dust system with hood to cover part of deck,Additional deck assembly for coarse or fine seeds,Vertical bucket Elevator to feed Specify Gravity Separator. We plan, design, supply, install & commission Seed / Grain Processing & handling plants for spice / grain / pluses / oil I seeds etc on TURNKEY BASIS. We also supply Seed / grain lab equipment. Due to constant research & development, all designs & specifications are subjected to change without prior intimation.
